Solas HR Titan Stainless PropProp selection is a critical factor in getting the most from your boat. While you can get wrapped up in the technical details of prop design and performance tweaks, from our perspective, prop selection is a mainly trial-and-error process that balances off a number of factors.

Getting the right diameter and pitch, on-the-water performance and feel, and of course, price, all need to be considered when deciding which prop is right for you, and prop material figures prominently in all three areas.

Consider this: a typical 3-blade stainless steel propeller runs around $350+. Compare this to around $110 for an aluminum prop. Composite props are in the same price range as aluminum, but some brands can be found for less.

But while stainless steel is the most expensive material, stainless propellers have a reputation for being much more durable that either aluminum or composites. They also purportedly offer better performance.

The increase in performance is usually attributed to greater stiffness, which translates into less flexing of the blades, but in a lower-powered boat like our project boat, would we notice any difference? Most reports involve boats with much  higher horsepower engines, and much higher horsepower/weight ratios than what we’re dealing with.

That’s why we decided to do this article. We’ve now tried a number of similar propellers made of these three materials on Toy Boat 2, and here are the  results…

Aluminum versus Composite

Comprop

Comprop

During initial setup of our project boat (Toy Boat 2), we started with aluminum propellers from our previous boat, then eventually switched to a 4-blade ComProp for our final configuration. That propeller was a 13.75 diameter x 15″ pitch model that yielded wide-open-throttle (WOT) engine revs of 5100 RPM, and a top speed of 31 MPH.

This was in the middle of the recommended WOT range for the motor (4500 -5500 RPM), so we felt like we pretty much had the right pitch/diameter and blade construction. (NOTE: These tests were done with our old carbureted Johnson 90 HP outboard, not our  new Evinrude E-TEC.)

We then switched to a 3-blade 13.75 x 15 Vortex aluminum propeller from Michigan Wheel. This propeller produced wide-open-throttle  (WOT) engine revs of 4900 RPM, and a top speed of 29 MPH. A slight degradation in performance, and contrary to the conventional wisdom that a 4-blade propeller would give better holeshot and less speed.  However, if you held the two props next to each other you could immediately see why: the ComProp’s blades were much thinner and had a much sharper leading edge than the Vortex.

We then switched to a 3-blade composite Piranha prop. The Piranhas have interchangeable blades, so we chose a set of 13.75 x 15 blades. We originally thought performance would return to the same level as the ComProp’s, but were surprised to find the performance unchanged from the Vortex prop. This is actually consistent with Piranaha’s claim of performance equivalent to aluminum props. We didn’t have independent measurement of the various specs like rake and cup, but visually the props looked pretty close.

When we looked closely at the blades, it appeared like the blade foil design for the Piranha looked very similar to the Vortex. The leading edge was thicker and duller than the ComProp.

Composite versus Stainless Steel

When we repowered TB2 with a new Evinrude E-TEC 90, we ran a number of tests to measure fuel economy and performance. These tests were done with a 3-blade Piranha propeller with 14 x 13 blades. The lower pitch was used to get the engine RPM into the upper end of the allowed WOT RPM range, as recommended by the dealer.

Given that the ComProp was a better performer than the Piranha, why hadn’t we changed back to the ComProp? The main reason was that the ComProp was not offered with a 13″ pitch. Even if it had been available in 13″ pitch, it was more cost effective to simply buy new blades for the Piranha, than to swap the entire prop.

After running the E-TEC with the Piranha propeller for a couple of months, we switched to a 3-blade Evinrude SST stainless propeller, in 13.75 x 13 size We re-ran our earlier performance tests and compared the data. While the weather conditions were not exactly the same (warmer air and water temps), we feel like they were close enough not to have materially affected the results.

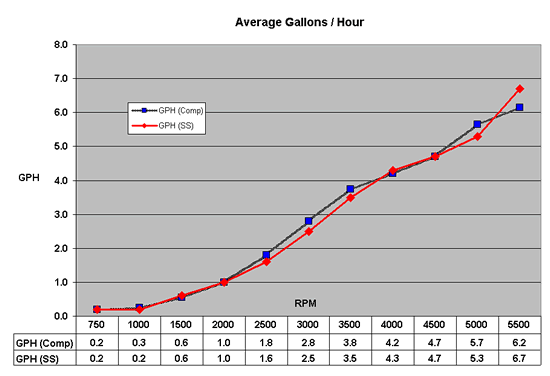

Here are some comparison charts. The red lines are for the SST, the blue lines for the Piranha:

Stainless Prop vs Composite - speedStainless Steel vs. Composite - GPHStainless Steel vs. Composite - MPG

To the naked eye, the SST has slightly more rake than the Piranha, but it has a much thinner foil design and a sharper leading edge than the Piranha. Its top-end speed is nearly identical to that of the ComProp with the old motor. This leads us to suspect that the ComProp would have performed similarly, had we been able to find it in the same diameter and pitch.

Stainless is clearly the toughest material of the three. The SST easily survived a close encounter of the worst kind with the pavement in front of our home, as well as a few unintended  trips through some submerged trees at a local lake. Those incidents, in our  opinion, would have seriously damaged either a composite or an aluminum propeller.

Value Comparison:

In the analysis below, we are going to assume the following:

  • The Vortex aluminum and the Piranha composite will perform identically
  • We will run an average of 1500 miles / year

Cost Comparison at Constant Speed:

Propeller Typical Street Price Speed MPG @22 MPH Annual Gas Cost @$2.50/gal Annual Gas Cost @$3.00/gal Annual Gas Cost @$3.50/gal
Vortex $110 22 mph 4.7 $798 $957 $1,117
Piranha $125 22 mph 4.7 $798 $957 $1,117
SST $400 22 mph 5.1 $735 $882 $1,029

So at the $3.00/gallon point it would take around 3.9 years to pay off the difference in price vs. the aluminum propeller, or 3.6 years vs. the composite

Cost Comparisons at Optimal MPG

Propeller Typical Street Price Speed MPG Gas cost @$2.50/gal Gas cost @$3.00/gal Gas cost @$3.50/gal
Vortex $110 23 mph 5.0 $750 $900 $1,050
Piranha $125 23 mph 5.0 $750 $900 $1,050
SST $400 26 mph 5.6 $670 $804 $938

So at the $3.00/gallon point it would take around 3.0 years to pay off the difference in price vs. the aluminum propeller, or 2.9 years vs. the composite. Note, however, that our average speed would be more than 10% higher (26 vs. 23 MPH).

Perhaps more important than gas cost, however, is the impact on total range. At optimal fuel economy, the stainless steel propeller would give TB2 a  maximum range (assuming similar loading conditions) of 252 miles, versus 225 miles for the aluminum or composite – a 27 mile difference!

Our Conclusions:

  • In this horsepower/weight/RPM range, propeller blade foil design has more of an impact than either propeller material choice or number of blades.
  • Composite propellers can perform as well or better than aluminum props
  • Stainless steel propellers provide better mileage than aluminum propellers, possibly more than a composite, depending on blade foil design
  • The stainless steel propeller provides more speed, but in this horsepower/size/RPM range, only 2 – 3 MPH more
  • Stainless is tougher, no doubt about it.

Are Stainless Steel Propellers Worth the Money?

In this horsepower/size/RPM range, the small incremental increase in speed would not justify the additional cost, nor would the savings in the cost of gas. However, if you combine these factors with the increase in range and the toughness of the propeller (keeping in mind that we don’t want to have to try to change a prop while at sea), in our opinion, it is worth the extra cost.

If the price of stainless steel is a bit too much, we would strongly recommend a composite prop over an aluminum prop. If you are not looking for the convenience of interchangeable blades, and can find the right diameter and pitch. the ComProps are the least expensive, and were great performers on TB2. The Piranha composites are also a great choice, as it is infinitely easier to carry spare blades than a spare prop.
